KATTSAFE SPYDA Temporary Roof Anchor

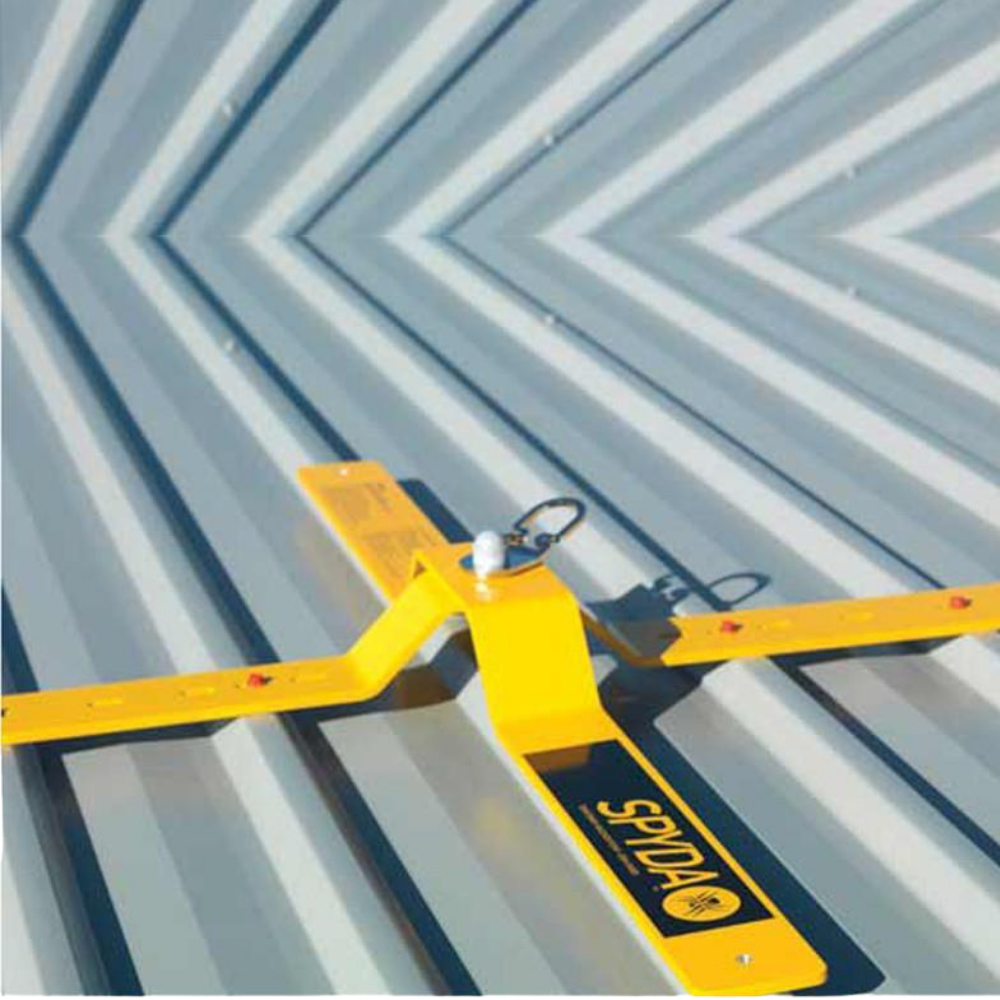

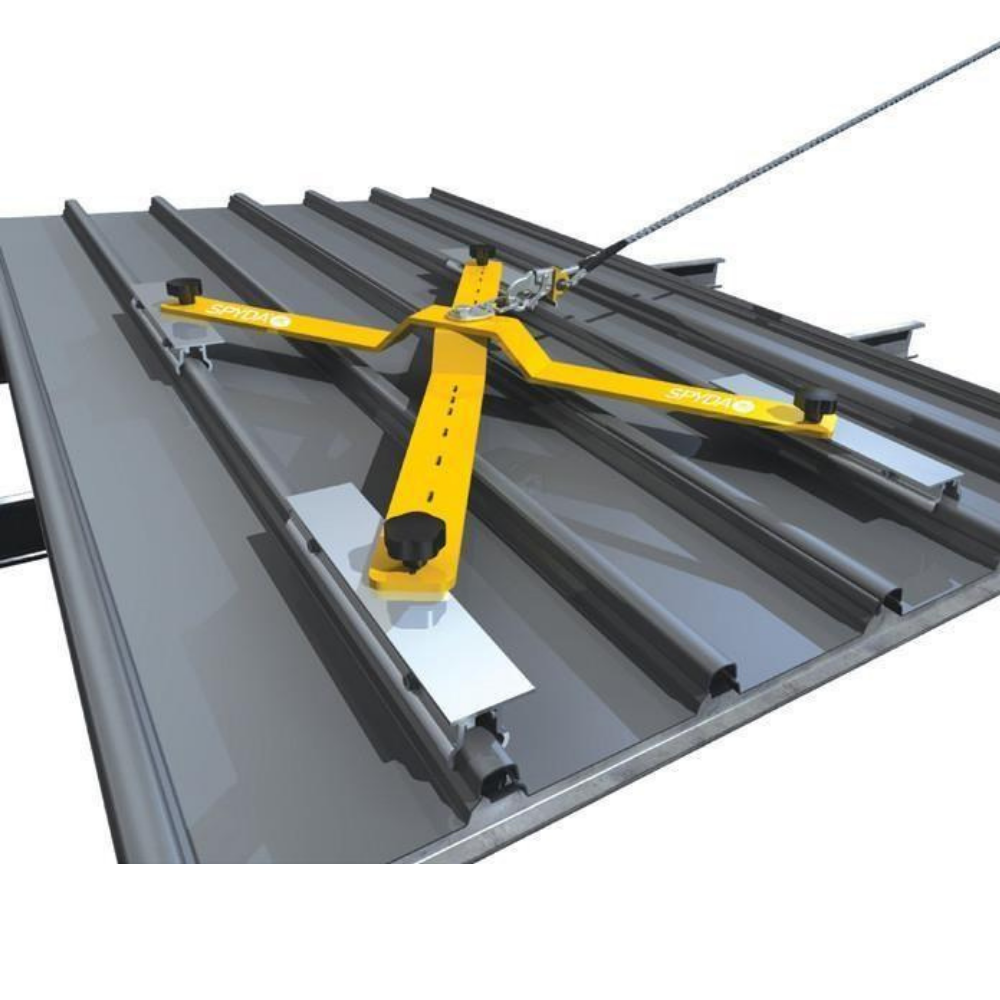

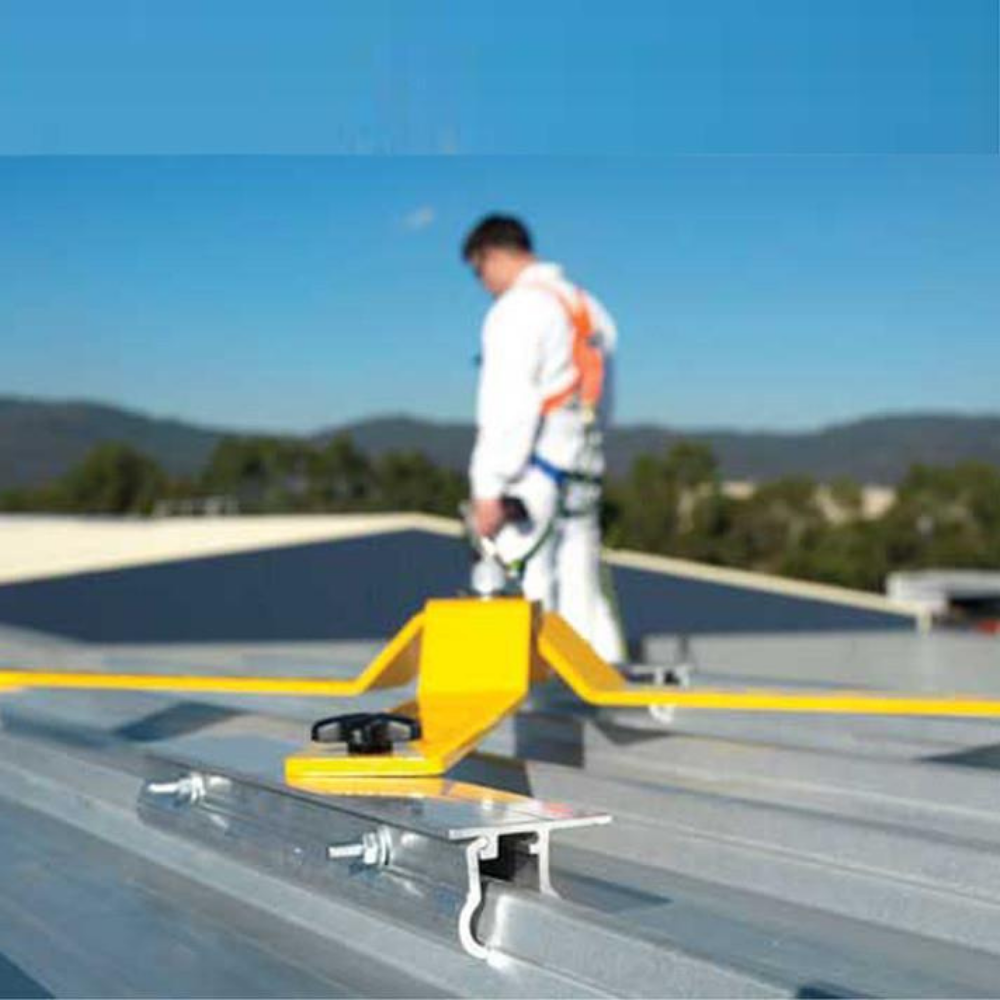

The Kattsafe Spyda Temporary Anchor Point provides the user with the option to clip or screw fix to most roof structure and incorporates an energy absorbing swivel eye lanyard attachment point. This temporary Roof Anchor is designed to be fastened to metal roof sheeting or framing using 6 x 14g x 75mm Tek screws or by the clamping system. Each SPYDA is rated to one person use.

SPYDA must be used with a personal energy absorber and lanyard system. Any roof structure must be inspected by a competent person and deemed strong enough to yield the required forces prior to application. If in doubt consult an engineer for clarification, as we cannot inspect or guarantee your roof structure from our website!

Features:

• Multiple slatted fixing points and pivot arms to suit any application
• Lightweight (10 kg), relocatable and folds
• All fixings and seals included in package
• Meets the requirements of AS/NZS 1891.4

Models:

AP145C (Spyda Unit + clamps included)

AP145S (Spyda Unit + screw-fix only - NO CLAMPS)

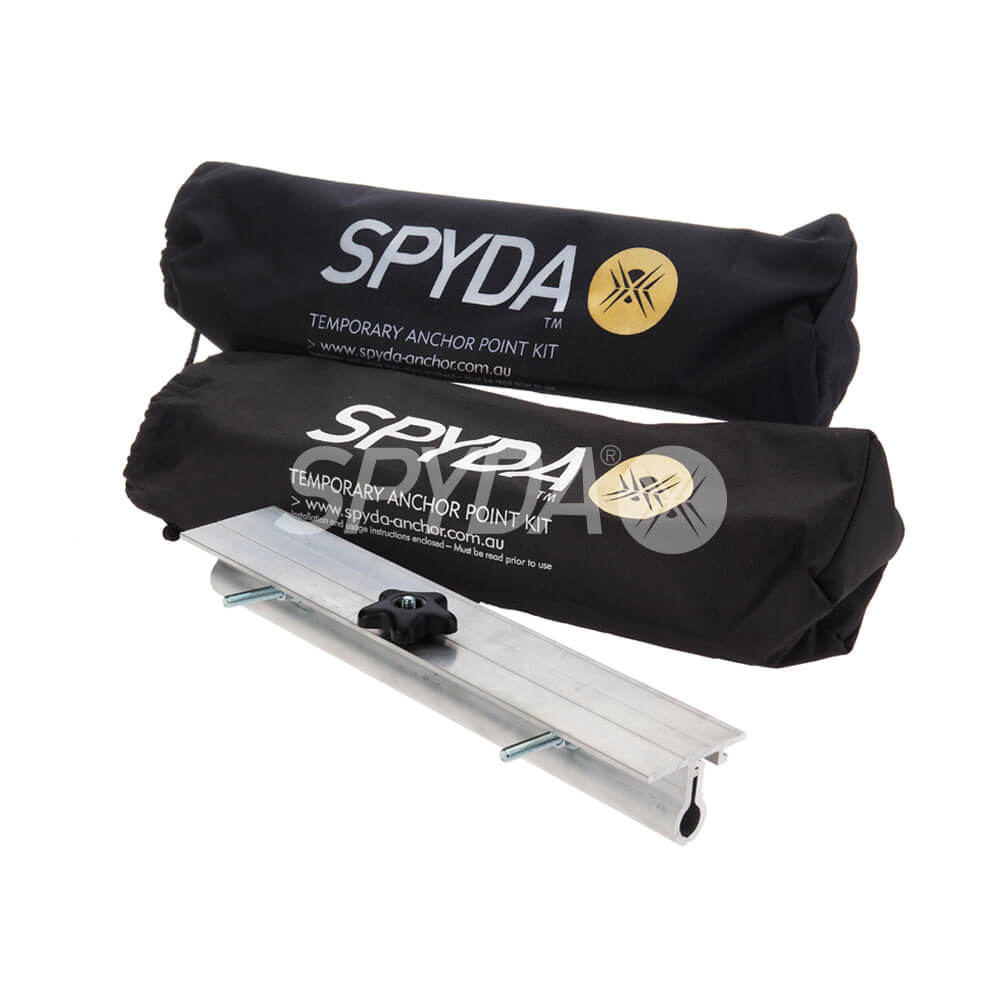

AP146 (replacement clamps kit only)

Download instruction manual here

Swivel eye – profiled stainless steel
Pivotarms – high tensile powder coated aluminium
Deckclamps – high tensile extrude aluminium
Arm length – 1270mm
Total unit height – 120mm
10.0kg (excludes fixings)
Timber fixing – 14g / 75mm type 17 tek screws
Metal fixing – 14g / 75mm self drilling tek screws
Recommended for single person use – 15kN rated
Support structure integrity, suitability and fixing method to be assessed and determined by a competent person prior to installation
SPYDA AP145 Temporary Anchor must be used in conjunction with an approved harness and lanyard system incorporating an energy absorber
