Free Flat Rate Shipping Australia Wide Conditions Apply
Sayfa  |  SKU: LD402

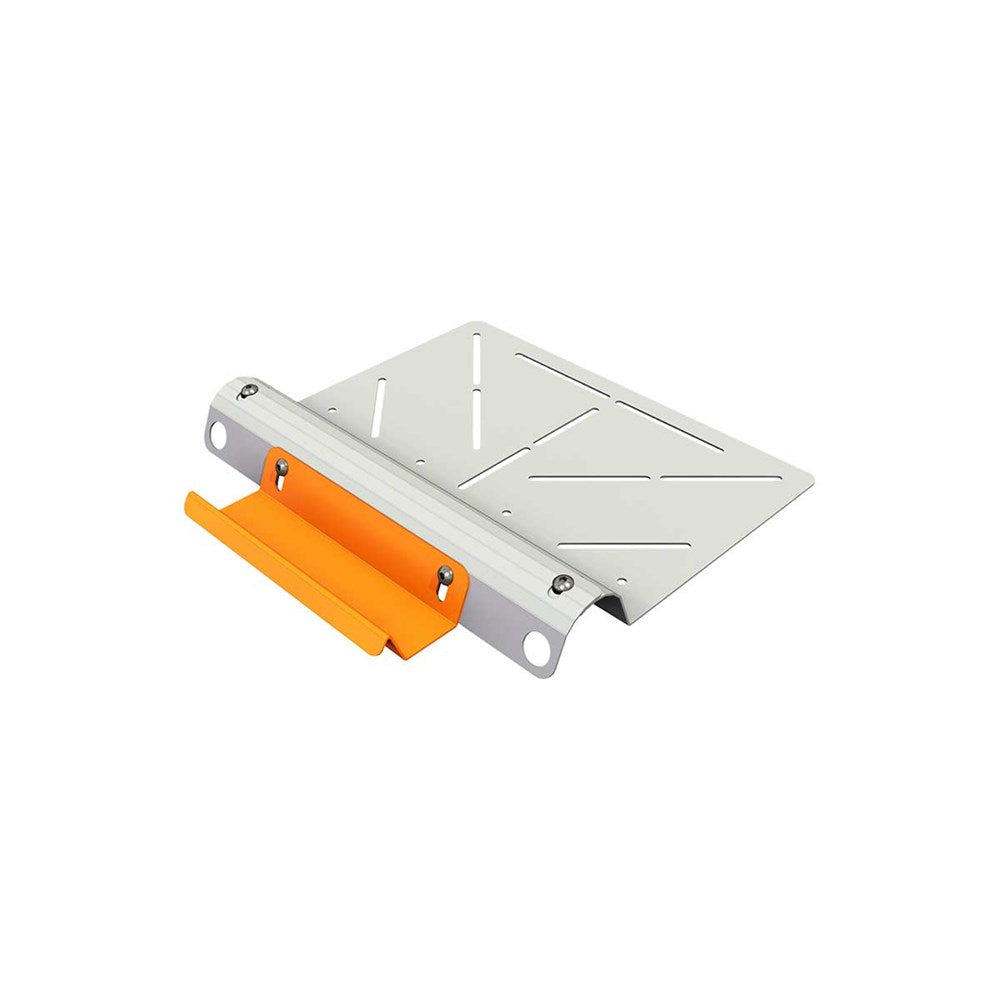

KATT Portable Ladder Support Bracket - Gutter / Parapet Mount

$161.96
Tax included Shipping calculated at checkout.

Description

MATERIALS

  • Profiled stainless steel

DIMENSIONS

  • 480mm (W) x 480mm (D) x 70mm (H)

WEIGHT

  • 3.7kg

FIXING REQUIREMENTS

  • Timber fixing – 14g/type 17 tek screw x 4

  • Metal fixing – 8mm Bulbtite rivet x 6 OR 14g into structure x 4

  • Concrete fixing – 8mm x 75 screw bolt x 3 OR wedge type anchor x 3

  • Steel structure – 8mm bolt set x 3

WORKING LOAD LIMIT

  • Recommended for single person use with approved portable ladder. Max user weight 120kg.

  • Support structure integrity, suitability and fixing method to be assessed and determined by an engineer unless it is clear to a competent person prior to installation.

Others

COMPLIANCE

Installation, certification, maintenance and usage of ladder to be in accordance with relevant statutory OH&S Codes of Practice Guidelines and manufacturer’s recommendation. Refer operation manual for detailed instructions and recommendations.

TESTING

Testing and performance based on single person use (max 120kg) using a Standards approved portable ladder.

PRODUCT WARRANTY

10 years from date of purchase subject to correct installation, use and maintenance in accordance with manufacturer’s specifications and recommendations. Excludes powder coating.

INSPECTION AND MAINTENANCE

Visual inspection for any damage or loose fixings must be done periodically and prior to installation. No certified maintenance required. Basic wear and tear preventative maintenance is recommended as per manufacturer’s specifications and recommendations. (Refer operation manual.)

IMPORTANT NOTE

Failure to supply and/or install proprietary product in accordance with above standards and codes, specifications and instructions voids complete system certification and/or warranty.

DOWNLOADS

LD401/402 Katt Ladder Support Brochure / Specification
LD401/402 Katt Ladder Support Installation Manual
LD401/402 Katt Ladder Support Brackets Certification & Warranty
LD402 Katt Ladder Bracket Maintenance Checklist
