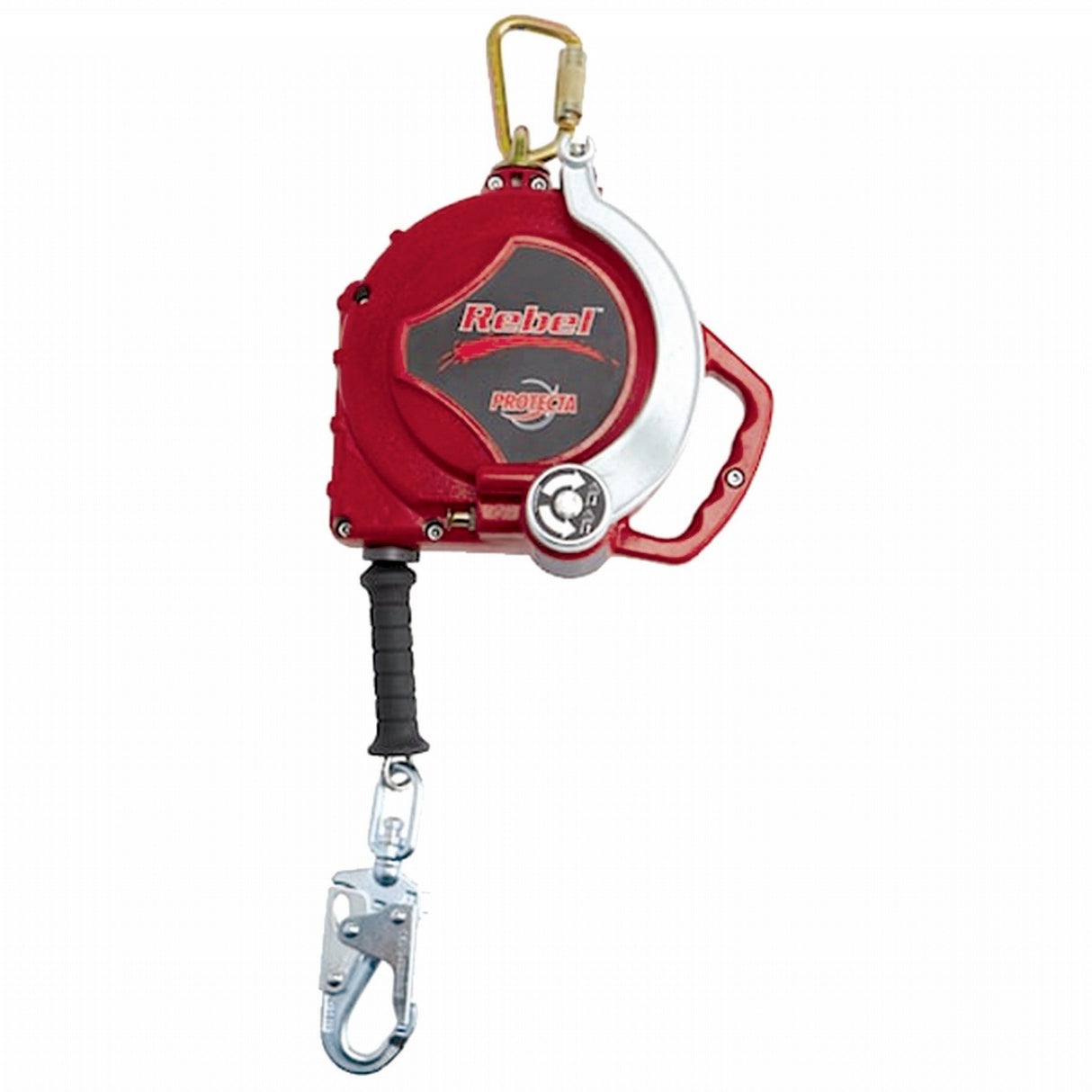

The Rebel self retracting lifeline (SRL) line is built to last providing an economical fall protection solution without compromising performance or safety.
The Rebel 3-Way SRL features a built-in emergency retrieval winch, 140kg user capacity and a robust design ensuring longevity. This SRL features a rugged aluminium housing and is also equipped with an ergonomic carrying handle that makes transportation to and from the job site easy. Rebel™ is designed with the worker in mind, featuring a stackable space-maximising design and an impact indicator to provide easy verification of whether the equipment has been involved in a fall. An SRL’s lifeline will extend as the user moves away, and retract automatically enabling the user to move about within a recommended working area at normal speeds. Should a fall occur, a speed sensing brake system will activate stopping the fall and reducing the forces imposed on the user to safe levels
Lifeline Length15 m
Physical Dimensions60.00x28.00x17.00 (cm)
Physical Weight11.90 kg (26.2lbs)
Lifeline TypeGalvanised Cable
Weight GroupOver 4.5 kg
Standards EN 360:2002 and EN 1496:2006 class B., OSHA, ANSI Z359.14, & AS/NZS 1891.3.
3-way emergency retrieval system - The built-in winch is ideal for use in confined spaces and allows the load to be raised or lowered during emergencies.
Stowabe retrieval handle - The integrated winch handle folds up to stay out of the workers way when not in use for added safety.
Rugged aluminum housing - Will withstand rough use, and its compact design incorporates a smooth case with rounded corners for added comfort and ease-of-use increasing worker productivity.
Built-in carrying handle - Integrated handle makes transport, set-up, use and storage quick and easy.
15m of 5mm galvanised steel cable lifeline - Abrasion resistant and extremely durable lifeline provides added field longevity, the retractable design provides freedom of movement, keeps the lifeline out of the worker's way and reduces dragging, snagging and trip falls.
Swiveling self-locking snap hook with impact indicator - Automatically locks and closes for added safety, swivels to limit lifeline twisting for ease of use and provides visual indication of fall arrest.
Speed sensing all metal brake system - Stops a falling worker within centimetres, and provides smooth consistent operation allowing the user to maintain normal work pace and not be interrupted with constant lock ups.
Internal energy absorption system - Specialised internal absorption system maintains safe fall arrest forces for users and tools up to 140kg.
Reserve lifeline system - Maintains a reserve for shock absorption when the entire lifeline is extended for added safety.
Side lifeline exit with ergonomic handle - Enables smooth operation and reduced cable wear, and the handle provides added comfort and ease of use when making connections.
High strength, corrosion resistant components - Stainless steel and zinc plated steel hardware provides added corrosion resistance and extends the life of the device.
Swiveling anchorage point - Stays in line with load for added security and allows use of a variety of standard karabiners.
Self-locking anchorage karabiner - Self closing and self locking karabiner keeps the SRL securely attached to the anchorage device.
