DBI Sala

2108406

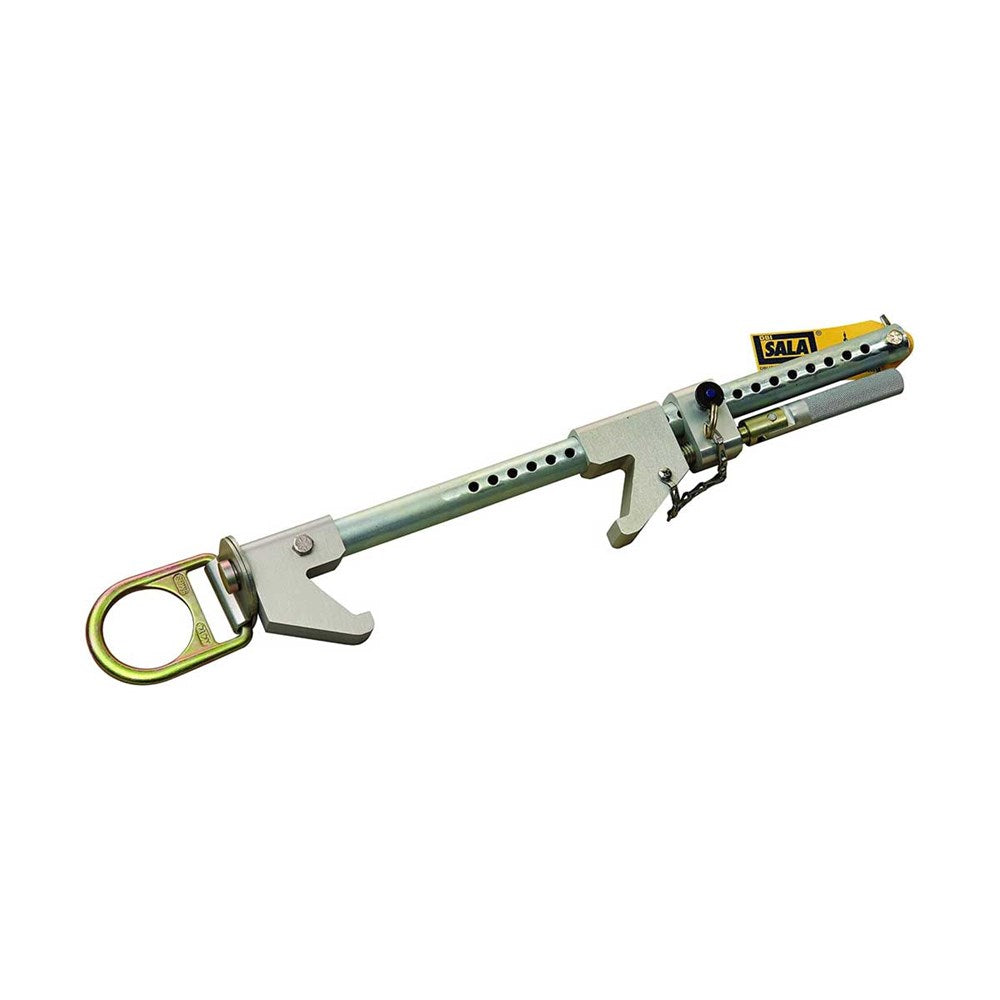

Sala Fixed I Beam Anchor

2 items left

Fixed beam anchor fits 2-1/2 in. to 12 in. wide I-beams (6.3-30.5cm) up to 1-1/2" thick (3.8cm).

PRODUCT HIGHLIGHTS



  • Installs onto 2-1/2 in. to 12 in. wide I-beam flange (6.3-30.5cm) up to 1-1/2" thick (3.8cm).
  • Attach in any orientation or direction
  • Compact and lightweight design
  • High strength steel and aluminum construction
  • Extremely rugged and corrosion resistant
  • Swiveling D-ring tie-off point
  • Detent style attachment with built-in tightening handle



Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.



  • Installs onto 2-1/2 in. to 12 in. wide I-beam flange (6.3-30.5cm) up to 1-1/2" thick (3.8cm).
  • Versatile size range fits many beams and securely attaches your personal fall arrest system to the structure offering maximum strength and durability. Other sizes are available in both sliding and fixed beam anchors.
  • Attach in any orientation or direction
  • For complete versatility, anchor can be attached in any orientation and used with a lanyard, self retracting lifeline, or as end-anchors for a DBI-SALA® horizontal lifeline sytem.
  • Compact and lightweight design
  • Makes attaching to the anchorage structure simple, fast and easy for added worker satisfaction and productivity.
  • High strength steel and aluminum construction
  • With an overall 5,000 lb. (22kN) strength and a 420 lb. (189kg) user capacity, the device provides a strong and safe connection and offers additonal tool carrying flexibility.
  • Extremely rugged and corrosion resistant
  • Quality materials and construction offer maximum durability to stand-up to the toughest environments, providing added longevity.
  • Swiveling D-ring tie-off point
  • A built-in D-ring provides a compatible connection for your fall protection system and swivels keeping your connecting component in-line at all times.
  • Detent style attachment with built-in tightening handle
  • Installs in seconds to the beam structure, with final tightening using a integrated adjustment handle.

Attachment Type Info

Clamp

Fits I-Beam Flange Width

2-1/2 to 12 in. (6.3-30.5cm)

Install Type

Reusable

Capacity

310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA

Brand

DBI-SALA®

Size

2-1/2 in. to 12 in. wide (6.3-30.5cm) up to 1-1/2" thick (3.8cm)

Velocity Ship

Yes

iSafe Equipped

Yes

Length

2-1/2 in. to 12 in. wide (6.3-30.5cm) up to 1-1/2" thick (3.8cm)

Label

Vinyl

Fastener

Stainless Steel and Zinc Plated Steel

Detent Pin

Stainless Steel

Model

2108406

Physical Dimensions

20.00x2.50x4.00 (in)

Physical Weight

5.30 lbs (2.4kg)

Product Styles

Fixed

Product Types

Anchors for Steel

Standards

OSHA 1910.66, OSHA 1926.502, Capital Safety Gen. Mfg. Req., ANSI A10.32, ANSI Z359.1
