Petzl Am'D PIN-LOCK Asymmetrical Karabiner


A new addition to the Am'D range, this asymmetrical aluminium karabiner can only be unlocked with a tool (included).

The Am'D PIN-LOCK asymmetrical aluminium karabiner is designed for use with groups. It secures the connection of the user thanks to its PIN-LOCK system, which can only be opened by the operator with a specific unlocking tool.

Please note, this item is a "special order" product for Australia, we carry limited stock, please allow up to 60 days for large orders.


Karabiner designed for use with groups or where third party tampering could occur:
- to fasten a harness (in combination with the CAPTIV positioning bar)
- to connect a trolley to a continuous lifeline
Secures the connection of the user:
- may be used with a CAPTIV positioning bar to favour loading of the karabiner along its major axis, to limit the risk of it flipping and to keep it integrated with the device
- PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner
Easy to use by the operator:
- Keylock system to avoid any involuntary snagging of the karabiner

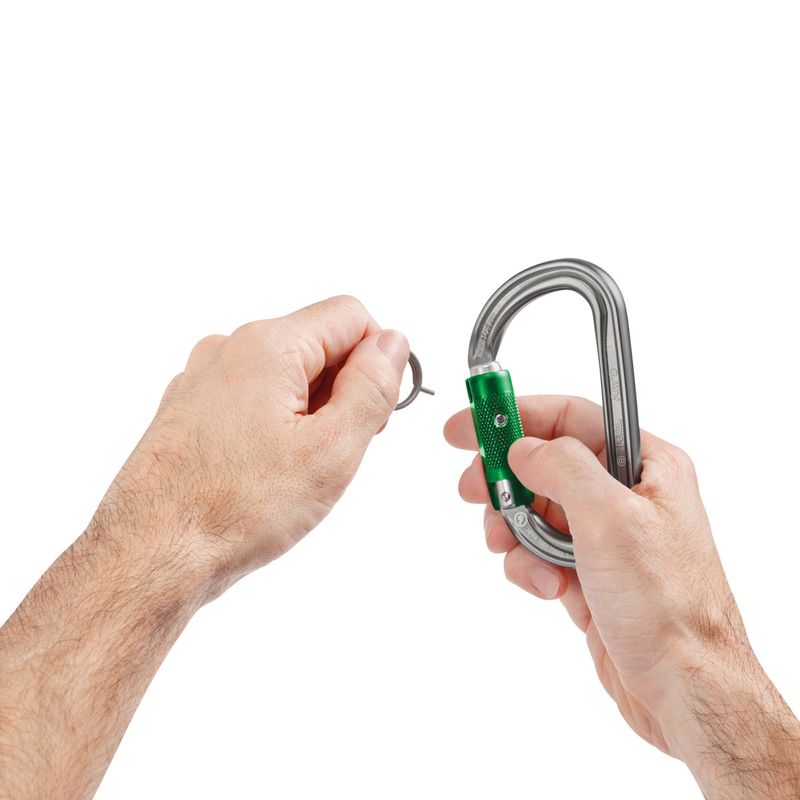

- two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
- H-profile protects markings from abrasion and ensures improved strength-to-weight ratio

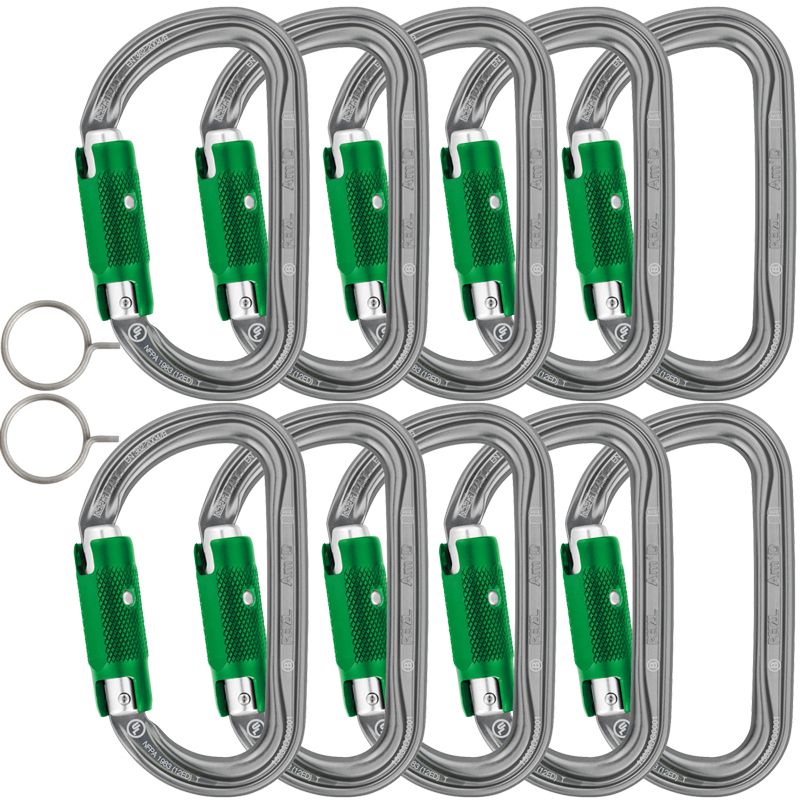

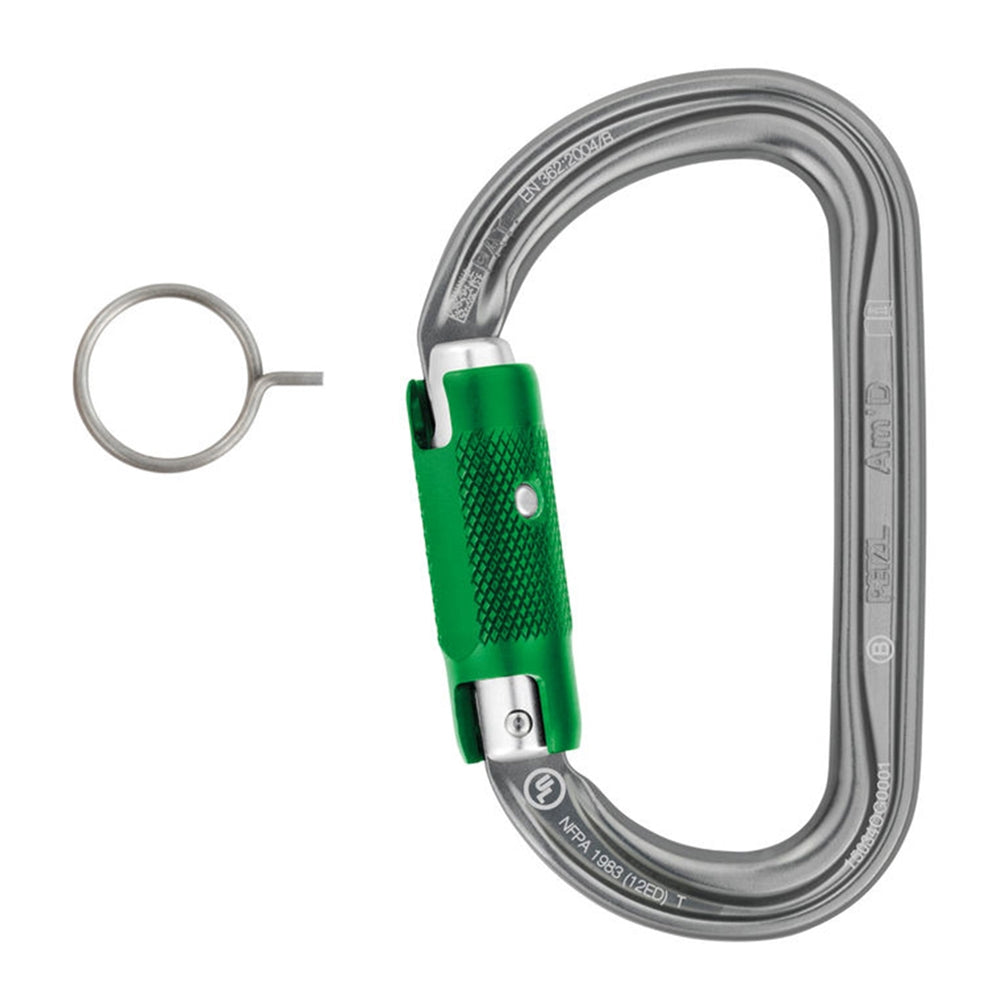

Sold in ready to assemble packs of 10 with two unlocking tools or individually with the unlocking ring only


Materials:        Aluminium

Certifications: CE EN 362, EAC


M34AB PL (10 Pk)

M34A PL (Each)


800 grams

80 grams

Locking system:






Major axis strength:

27 kN

27 kN

Minor axis strength:

8 kN

8 kN

Open gate strength:

8 kN

8 kN

Gate opening:

25 mm

25 mm
