Arachnipod Tripods

Style

The modular tripod system that can be expanded for greater uses later on!

The Arachnipod is a self-supporting device providing quick and easy access to confined space entry points such as manholes and voids. This system can also be used as a high directional frame. A unique feature of the Arachnipod is that it flat packs for convenient storage, yet is quick and easy to set up. The system can be used with either a winch retrieval system or a mechanical advantage system or both. For heavy loads, four legs can used to form a quadpod and increase the safe working load (SWL). Its versatility makes it an ideal system for workers in industries such as rescue and emergency services, construction, military, utility services, mining, film and maintenance.

The Arachnipod is a rugged and versatile tripod with built in safety factors that exceeds internationally recognised rescue systems and standards. Its simplistic but unique design makes it ideal for heavy duty confined space requirement where guaranteed performance is mandatory.

The tripod has top stabilisation anchoring points that assist in the stabilisation of the system when using the external mechanical advantage or retrieval systems.

The Arachnipod is compatible with Arachnipod accessories.

"Introduction to Arachnipod" Video playlist on Youtube



TRIPOD-ONLY

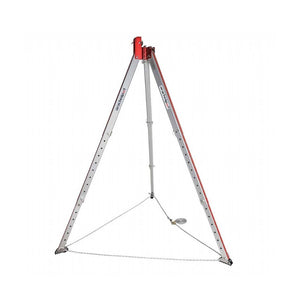

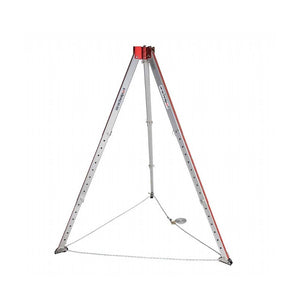

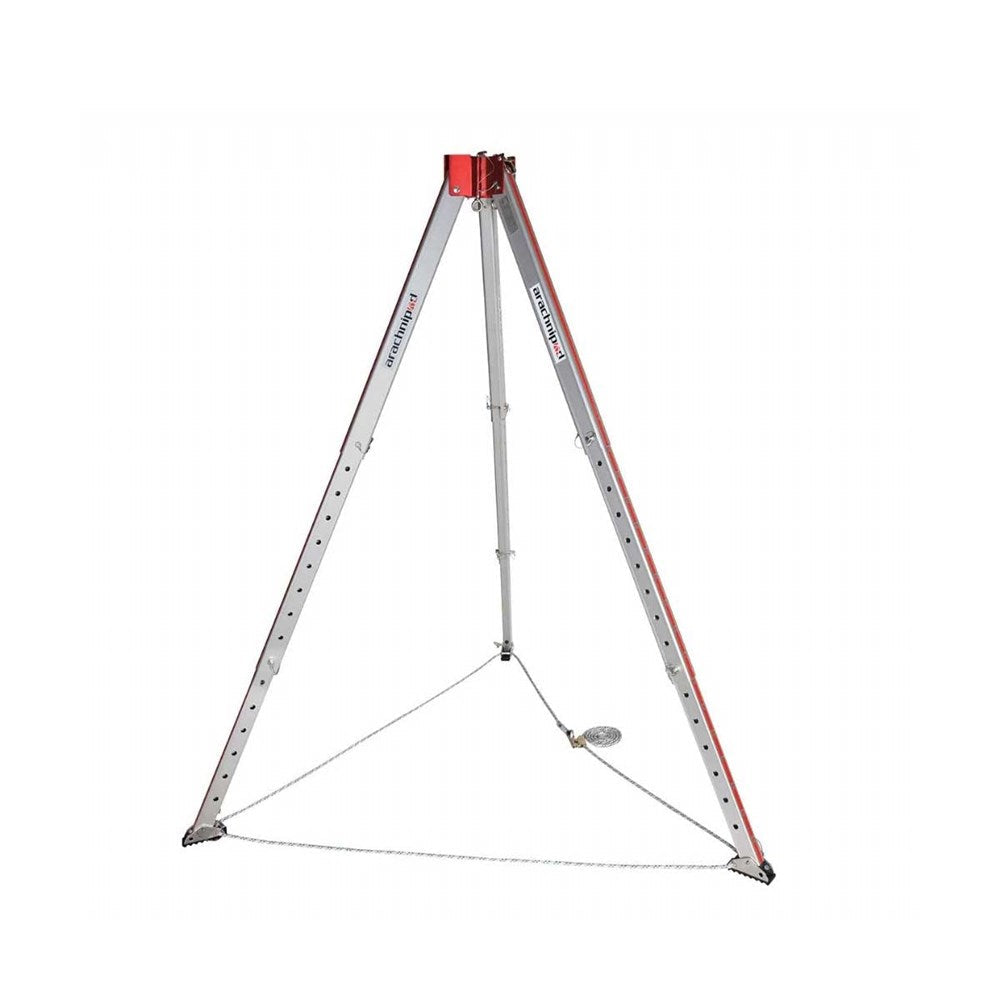

  • "Industrial Tripod" contains 3 standard legs, making a tripod.

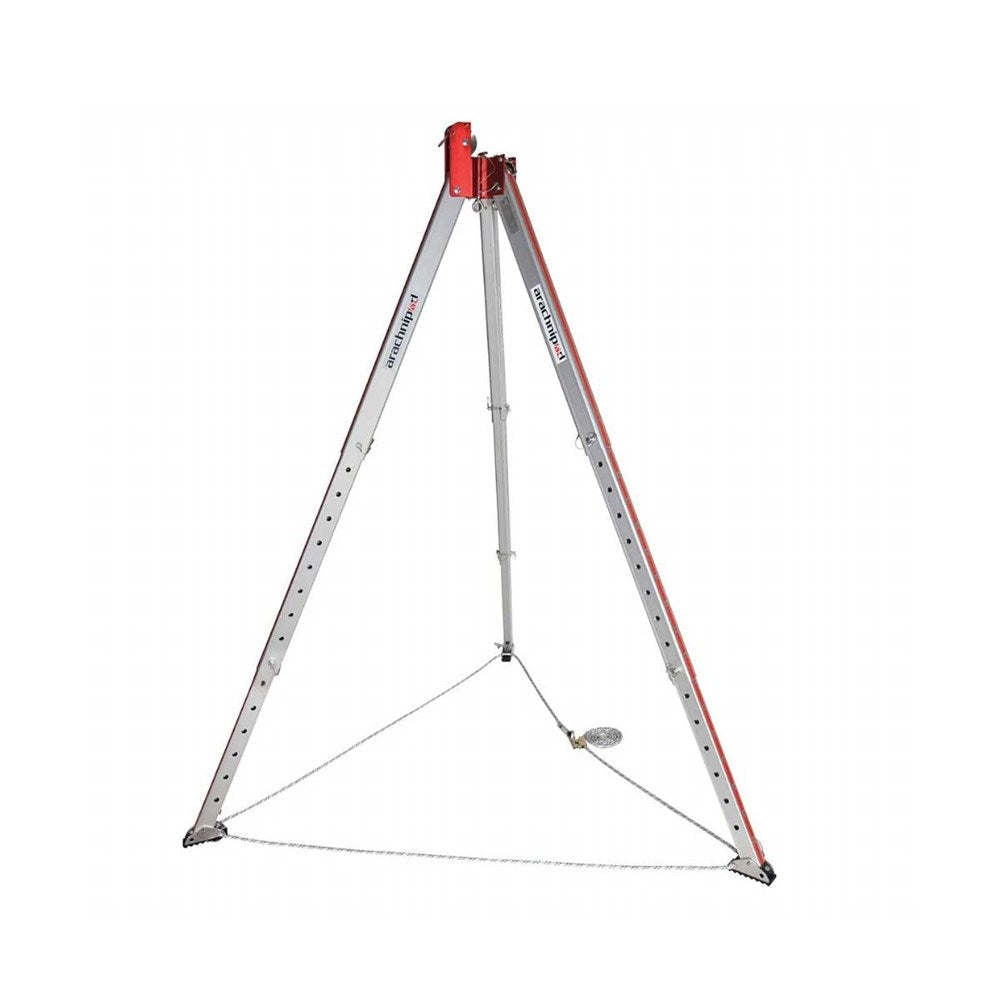

  • "Industrial PLUS Tripod" contains a Pulley Leg, for external rope feed (plus 2x standard leg)

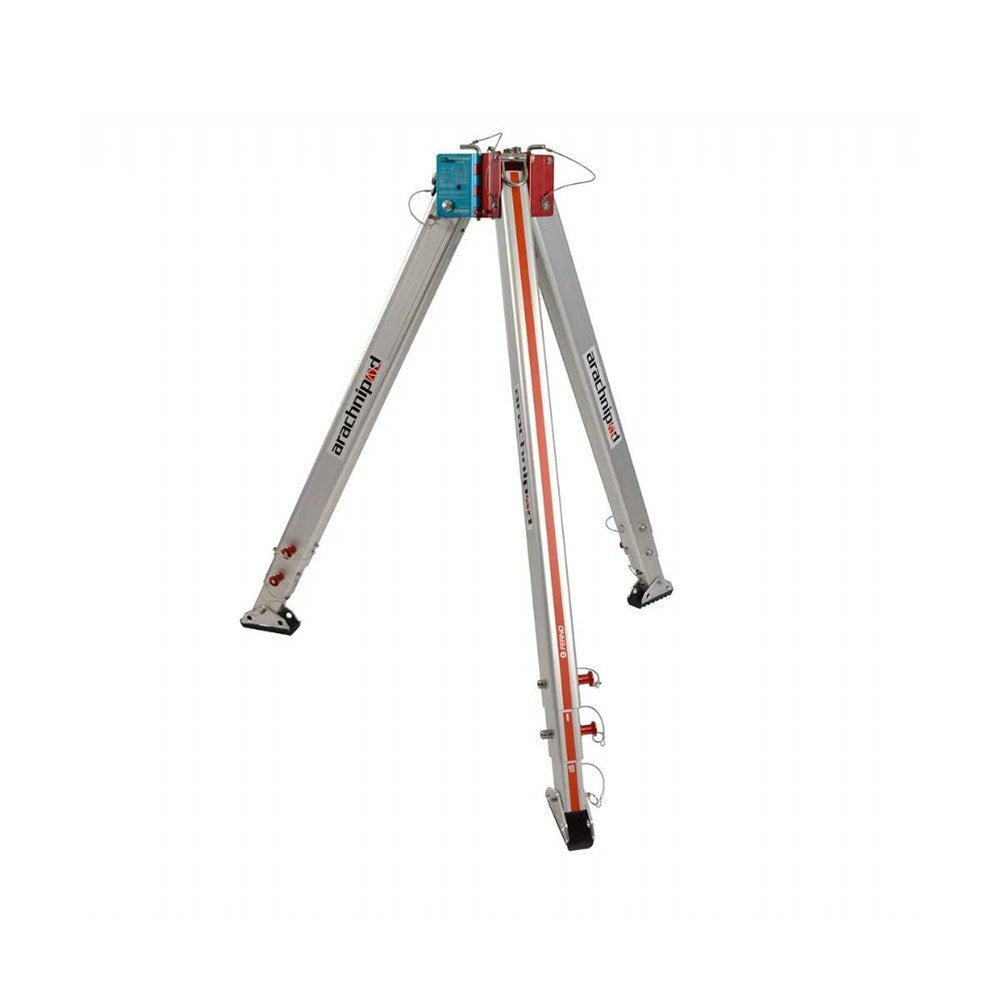

  • "Advantage BASIC Tripod" contains a Lazy Leg, which folds out to wider angles (difficult locations) (plus 2x standard leg)

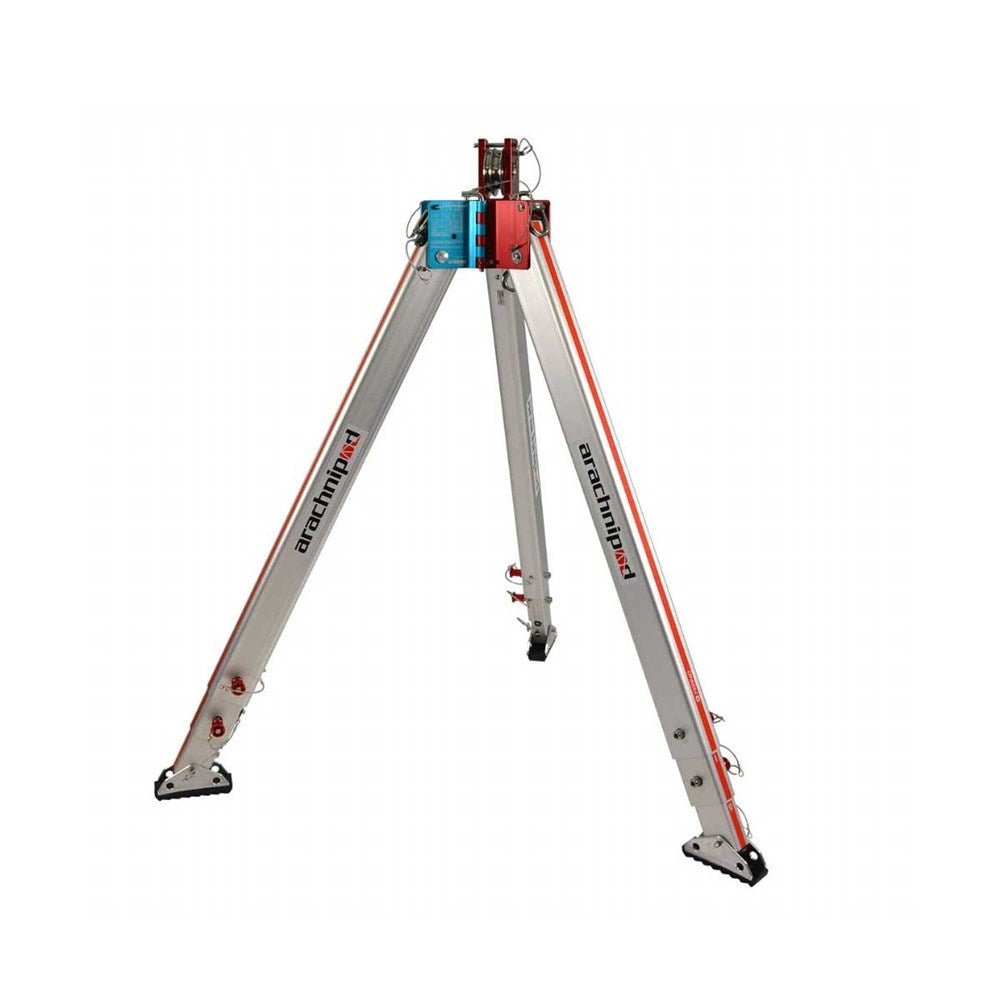

  • "Advantage Tripod" contains BOTH a Pulley Leg, AND Lazy Leg (plus 1x standard leg)

FULL KITS

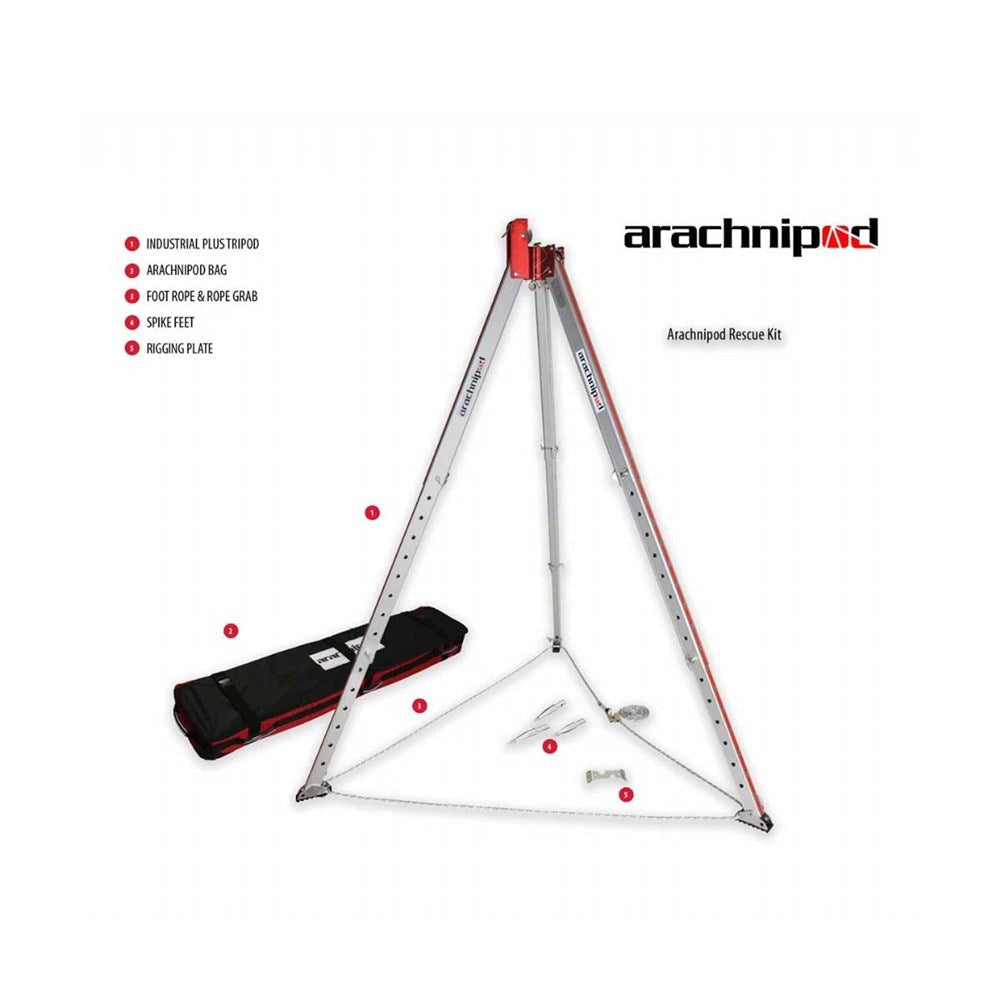

  •  "Rescue Kit" = "Industrial Plus Tripod" + rough-ground accessories

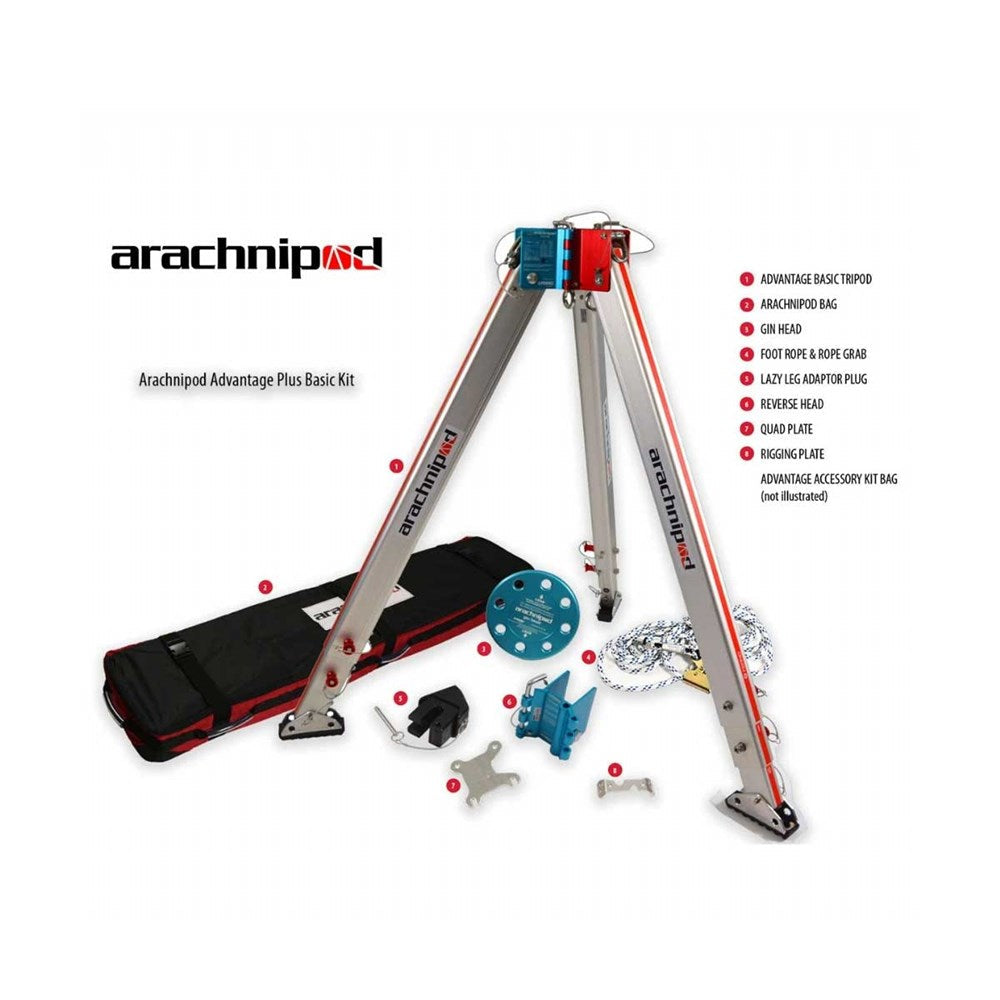

  • "Advantage Plus BASIC Kit" = "Advantage Basic Tripod" + rigging accessories

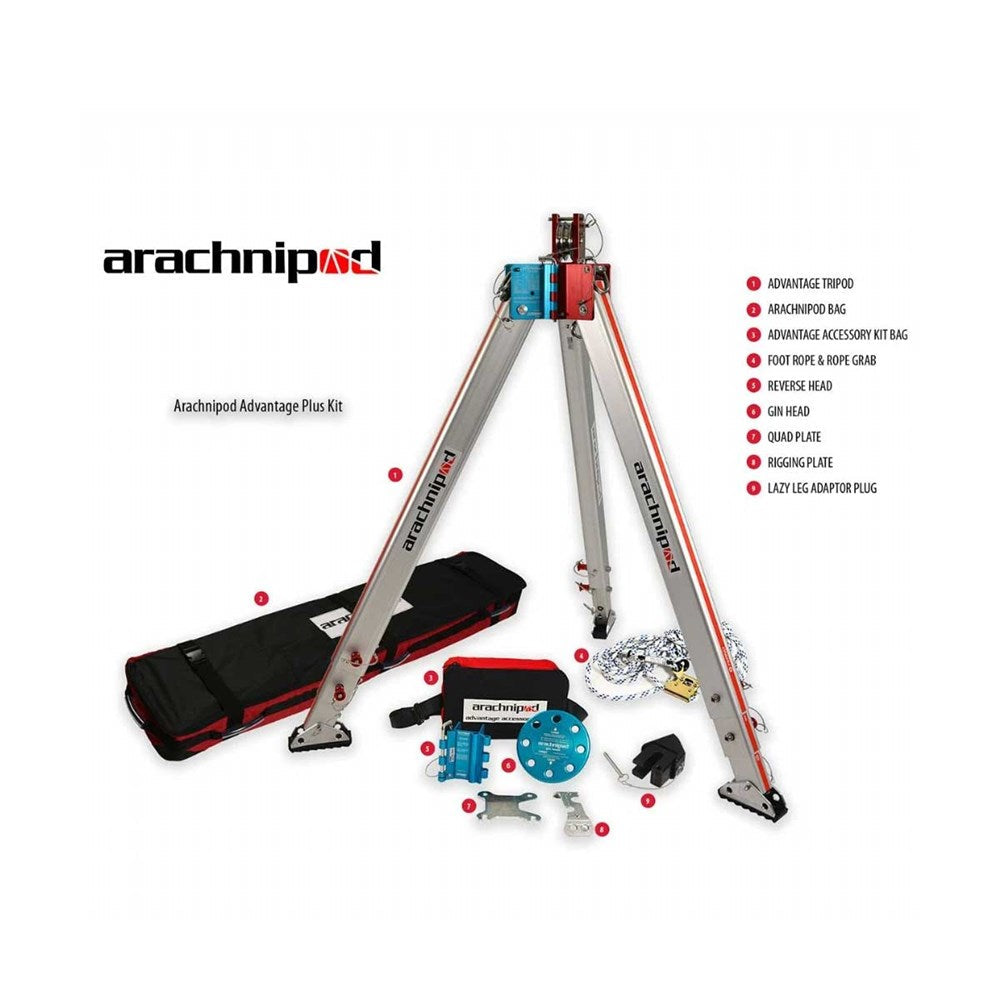

  • "Advantage Plus Kit" = "Advantage Tripod" + rigging accessories

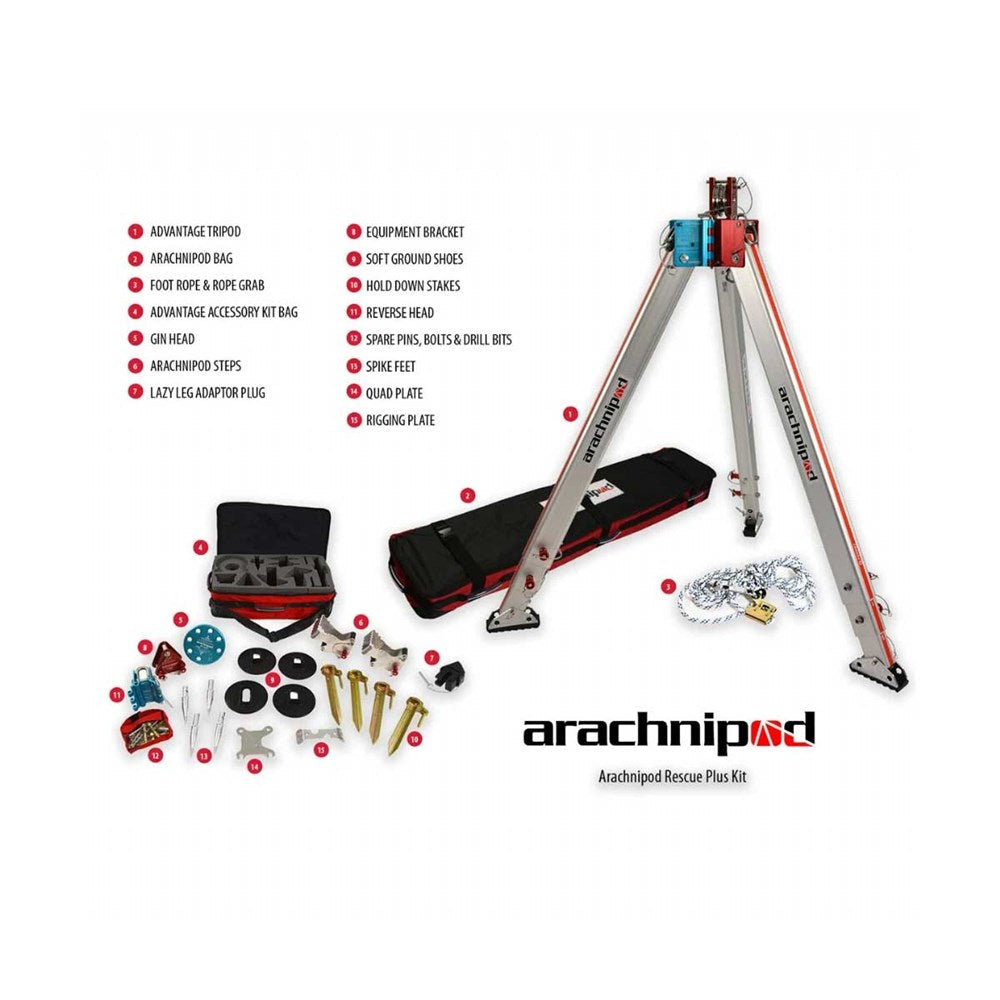

  • "Rescue Plus Kit" = "Advantage Tripod" + rigging accessories + rough ground accessories + spare parts + more!



Weight:           approx 27kg depending on configuration



Max Height Extension:  2957mm



 Max Feet Spread:        2530mm Tripod (not counting Lazy Leg)



Ratings (SWL-Safe Working Load) Leg Setting: A-1 SWL external anchor point: 400kg;  SWL load anchor to leg: 220kg



Approved to CE Standard EN 795B
