Petzl

H168-P37S12

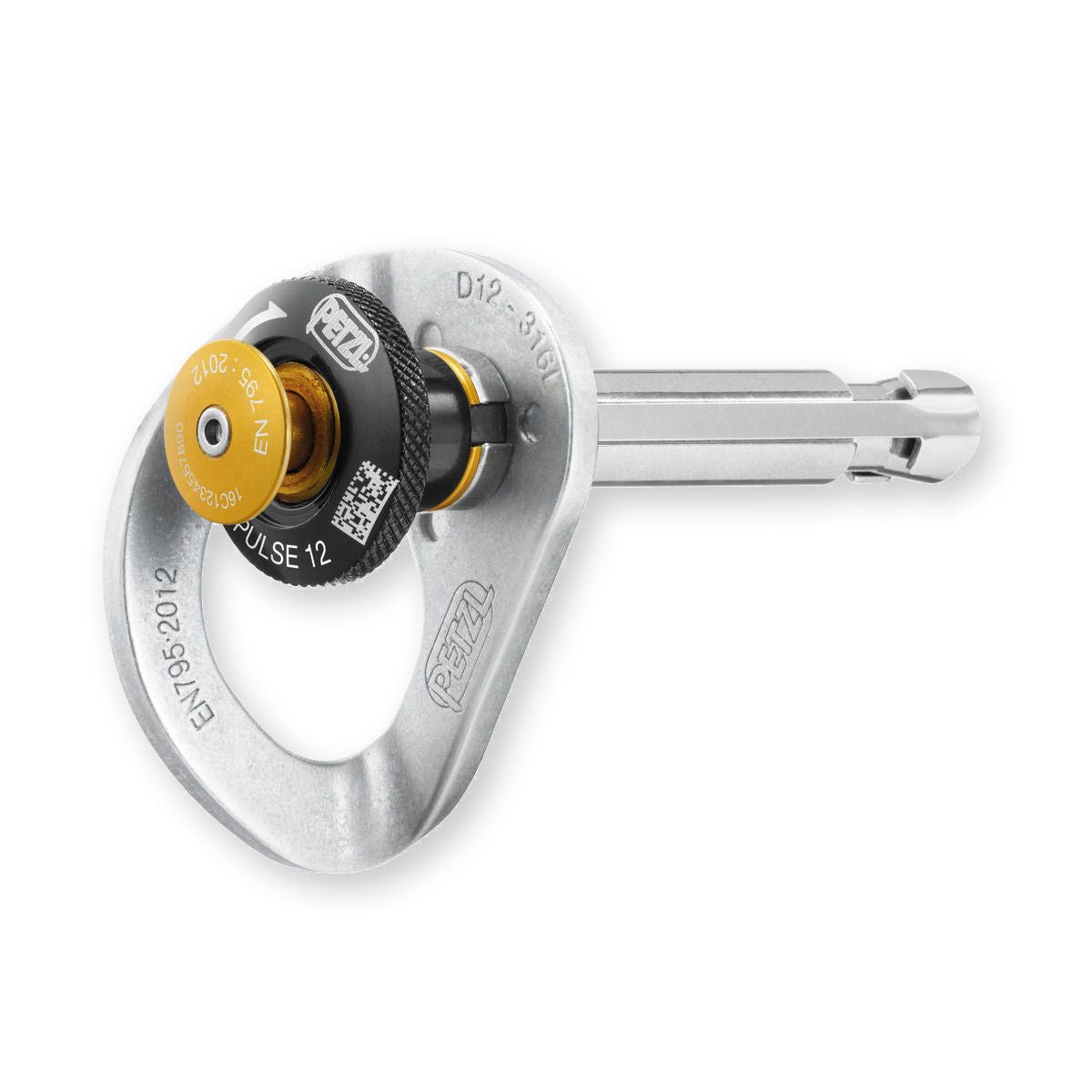

Petzl Coeur PULSE Removable Bolt Anchor point

Package

The COEUR PULSE is a removable high-quality stainless steel anchor that can be installed and removed for reuse very simply and rapidly, without tools. The locking function limits the risk of involuntary removal.

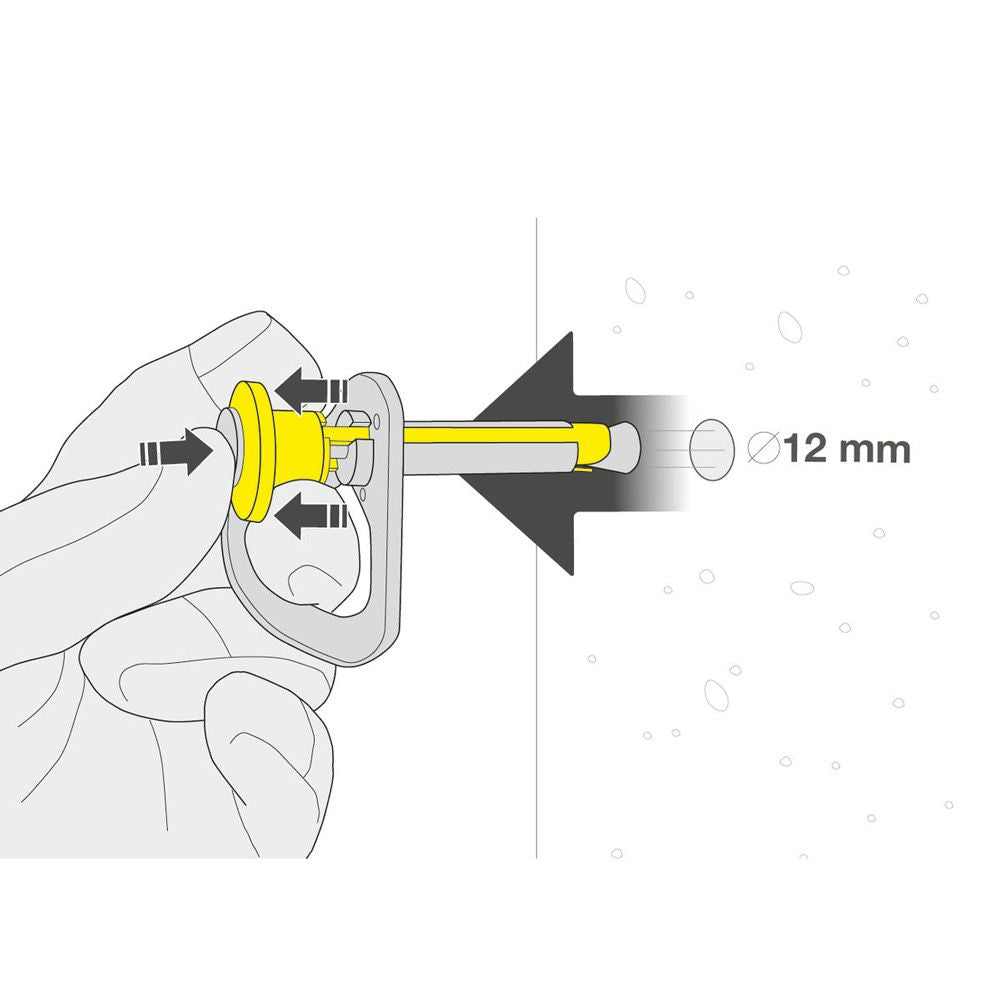

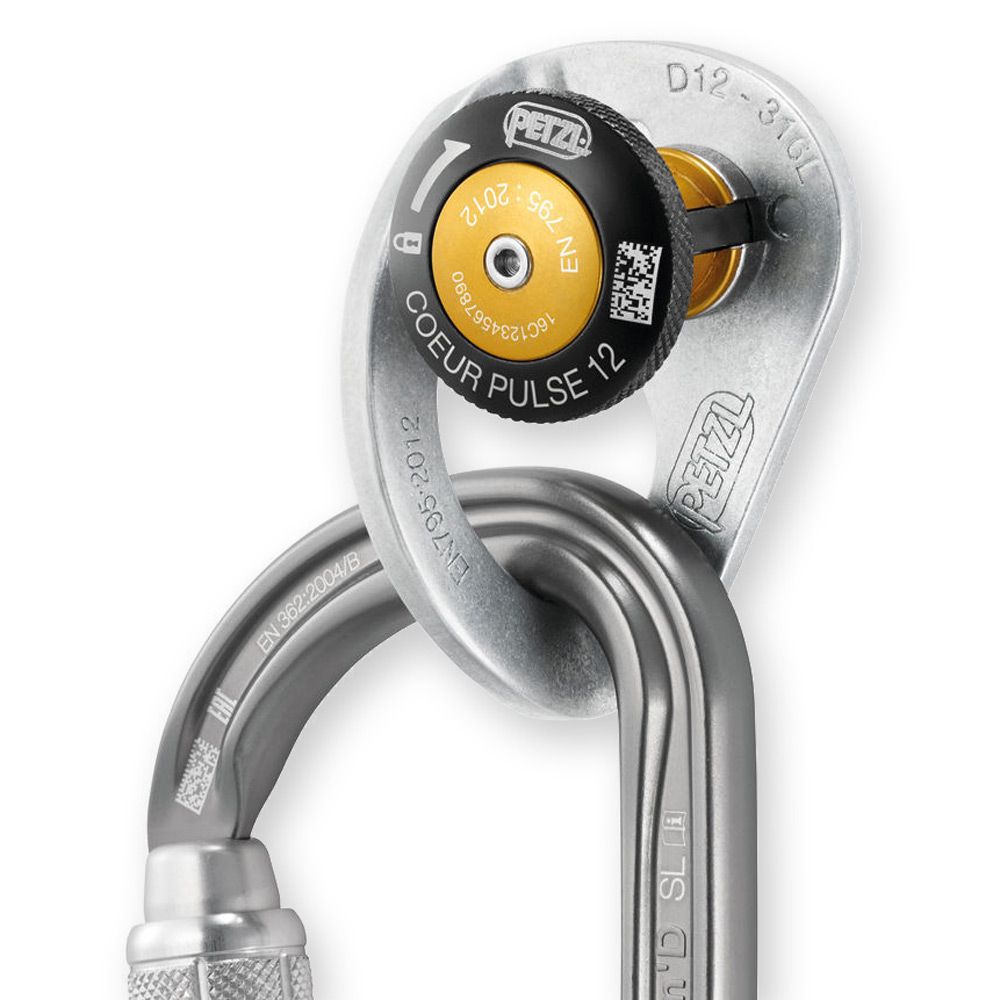

Easy to use:- simple, rapid installation and removal, without tools, allowing it to be reused (*)- locking function limits the risk of involuntary removal(*) For optimal use of the anchor, the hole must be perfectly cylindrical. So choose a drill bit with three or four cutting edges. Easy clipping:- the wide, ergonomic connection hole facilitates carabiner clipping- the width of the hole allows installation of two carabiners at the same time- Prevents wear of carabiners thanks to the thickness of the hanger and the rounded edges of the connection hole
Hanger anti-rotation system:- textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
Material(s): 316L stainless steelCertification(s): CE EN 795 BReferencesP37S 12Diameter12 mmWeight140 gDrilling depth6,5 cmDrilling diameter12 mmResistance to cutting on concrete 50 MPa25 kNPull-out strength in concrete 50 MPa20 kN
